ECSC 2026 - Cache me if you can

This year’s ECSC took place in Bochum, Germany. I authored 3 forensic challenges for this competition:

  • Hollow Boot - Easy
  • [Undisclosed] - Medium - Unreleased
  • Cache me if you can - Hard

Hollow Boot is a dead-simple challenge, requiring only the extraction of an image and then reusing the cryptsetup command to decrypt and mount the root partition. The medium challenge never went out: it was scheduled to follow Cache me if you can, and with that one left unsolved, even with 4 hours on the clock it didn’t make sense to release another.

Enumeration

We are given a zip containing 2 files:

  • memory.elf
  • b_disk.img - b_disk.img: bcachefs, UUID=3f730749-d766-4785-bb68-d8b64ce71efe, version 1062, min version 1062, device 0, 1 devices

We have a bcachefs disk image, and a memory dump. Let’s inspect the superblock information of that partition:

1
2
3
4
5
6
7
8

$ bcachefs show-super b_disk.img

WARNING: kernel does not have CONFIG_RUST enabled; this will be required for bcachefs in the near future
         please alert your distribution or kernel developers if your kernel does not support CONFIG_RUST
Enter passphrase:
error requesting encryption key: Required key not available
error starting filesystem: Required key not available
Error: Required key not available

The superblock bytes are not actually encrypted, but bcachefs tries to unlock the whole device. In any case, we can see the device is encrypted. Before looking for a way to decrypt the partition, we first have to understand how bcachefs goes from passphrase -> ChaCha20.

The challenge was conceived with bcachefs in mind because of ChaCha20 => Immune to aeskeyfind AES scheduling identification!

Bcachefs Encryption Primer

bcachefs key derivation: the passphrase feeds an scrypt KDF (libsodium, fixed salt "bcache") to make the Passphrase Key, which is handed to the kernel and ChaCha20-unwraps the master key stored in the superblock's crypt field; the magic is checked against "bch**key" and the master key ends up in bch_fs.chacha20_key, in memory only

The steps pertaining to this challenge are:

  1. Passphrase is read and seeds a KDF which derives a KEY: Passphrase Key
  2. Passphrase Key is stored in the Kernel Keyring
  3. Passphrase Key is used to encrypt the Master Key (ChaCha20 key), which is generated during bcachefs --format. The Master Key is stored encrypted in the super_block ON disk!
  4. On decryption, the Master Key is stored in bch_fs.chacha20_key.

We have 3 equivalent values, any one of which is necessary and sufficient to solve the challenge!

While all 3 values are sufficient, some of them are easier to work with and require much, much less work to be sufficient. We’ll explore this later on!

Volatility ISF

In order to use volatility with this image, we have to create symbols for it — or, since this is an Ubuntu image (and not a made-up custom kernel…), we could try using AbyssW4tcher’s repository, which contains ISFs for popular distros.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

$ vol -f memory.elf banners
Volatility 3 Framework 2.28.3
Progress:  100.00               PDB scanning finished
Offset  Banner

0x53a000e0      Linux version 7.0.0-28-generic (buildd@lcy02-amd64-047) (x86_64-linux-gnu-gcc (Ubuntu 15.2.0-16ubuntu1) 15.2.0, GNU ld (GNU Binutils for Ubuntu) 2.46) #28-Ubuntu SMP PREEMPT_DYNAMIC  (Ubuntu 7.0.0-28.28-generic 7.0.12)
0x53bce580      Linux version 7.0.0-28-generic (buildd@lcy02-amd64-047) (x86_64-linux-gnu-gcc (Ubuntu 15.2.0-16ubuntu1) 15.2.0, GNU ld (GNU Binutils for Ubuntu) 2.46) #28-Ubuntu SMP PREEMPT_DYNAMIC Sun Jun 21 01:01:36 UTC 2026 (Ubuntu 7.0.0-28.28-generic 7.0.12)
0x556b37e0      Linux version 7.0.0-28-generic (buildd@lcy02-amd64-047) (x86_64-linux-gnu-gcc (Ubuntu 15.2.0-16ubuntu1) 15.2.0, GNU ld (GNU Binutils for Ubuntu) 2.46) #28-Ubuntu SMP PREEMPT_DYNAMIC Sun Jun 21 01:01:36 UTC 2026 (Ubuntu 7.0.0-28.28-generic 7.0.12)2)
0x80b5b8a8      Linux version 7.0.0-28-generic (buildd@lcy02-amd64-047) (x86_64-linux-gnu-gcc (Ubuntu 15.2.0-16ubuntu1) 15.2.0, GNU ld (GNU Binutils for Ubuntu) 2.46) #28-Ubuntu SMP PREEMPT_DYNAMIC Sun Jun 21 01:01:36 UTC 2026 (Ubuntu 7.0.0-28.28-generic 7.0.12)

$ vol --remote-isf-url 'https://github.com/Abyss-W4tcher/volatility3-symbols/raw/master/banners/banners.json' -f memory.elf linux.pslist

Volatility 3 Framework 2.28.3
Progress:  100.00               Stacking attempts finished
OFFSET (V)      PID     TID     PPID    COMM    UID     GID     EUID    EGID    CREATION TIME   File output

0x88f2408baa80  1       1       0       systemd 0       0       0       0       2026-07-28 15:43:33.311888 UTC  Disabled
0x88f2408b2a80  2       2       0       kthreadd        0       0       0       0       2026-07-28 15:43:33.311888 UTC  Disabled
0x88f2408b0000  3       3       2       pool_workqueue_ 0       0       0       0       2026-07-28 15:43:33.413888 UTC  Disabled
0x88f2408b5500  4       4       2       kworker/R-rcu_g 0       0       0       0       2026-07-28 15:43:33.413888 UTC  Disabled
0x88f2408ed500  5       5       2       kworker/R-sync_ 0       0       0       0       2026-07-28 15:43:33.413888 UTC  Disabled
0x88f2408eaa80  6       6       2       kworker/R-kvfre 0       0       0       0       2026-07-28 15:43:33.413888 UTC  Disabled
[...]

If you wanted to manually create ISFs you could follow my guide over at Hack The Box’s Blog

Volatility caches the matched symbol file, so subsequent invocations don’t need the --remote-isf-url

The Mount Chronicle

Let’s explore the Bash history:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

vol -f memory.elf linux.bash
Volatility 3 Framework 2.28.3
Progress:  100.00               Stacking attempts finished
PID     Process CommandTime     Command

4536    bash    2026-07-28 15:44:03.000000 UTC  bcachefs image create -h
4536    bash    2026-07-28 15:44:03.000000 UTC  ls
4536    bash    2026-07-28 15:44:03.000000 UTC  cd /mnt/
4536    bash    2026-07-28 15:44:03.000000 UTC  sudo apt install neovim
4536    bash    2026-07-28 15:44:03.000000 UTC  sudo nvim /etc/default/grub
4536    bash    2026-07-28 15:44:03.000000 UTC  bcachefs version
4536    bash    2026-07-28 15:44:03.000000 UTC  bcachefs -h
4536    bash    2026-07-28 15:44:03.000000 UTC  sudo vim /etc/default/grub
4536    bash    2026-07-28 15:44:15.000000 UTC  sudo su

4536    bash    2026-07-28 15:45:06.000000 UTC  ls
4536    bash    2026-07-28 15:45:08.000000 UTC  ls -lah
4536    bash    2026-07-28 15:45:17.000000 UTC  sudo chown user:user b_disk.img
4536    bash    2026-07-28 15:45:19.000000 UTC  clear
4536    bash    2026-07-28 15:45:51.000000 UTC  sudo bcachefs unlock -k session -f /run/media/user/dev_usb/passphrase.txt b_disk.img

4536    bash    2026-07-28 15:46:09.000000 UTC  sudo mount -t bcachefs b_disk.img /mnt
4536    bash    2026-07-28 15:46:13.000000 UTC  mount

4536    bash    2026-07-28 15:47:08.000000 UTC  keyctl list
4536    bash    2026-07-28 15:47:12.000000 UTC  sudo apt install keyutils
4536    bash    2026-07-28 15:47:17.000000 UTC  keyctl list
4536    bash    2026-07-28 15:47:20.000000 UTC  keyctl list @s
4536    bash    2026-07-28 15:47:31.000000 UTC  keyctl unlink 566656059 @s

4536    bash    2026-07-28 15:48:55.000000 UTC  keyctl show @s
4536    bash    2026-07-28 15:49:14.000000 UTC  keyctl revoke 566656059 @s
4536    bash    2026-07-28 15:49:26.000000 UTC  keyctl revoke 566656059
4536    bash    2026-07-28 15:49:46.000000 UTC  sudo sd-mem
4536    bash    2026-07-28 15:49:49.000000 UTC  sdmem

5342    bash    2026-07-28 15:48:30.000000 UTC  exit
5342    bash    2026-07-28 15:48:30.000000 UTC  chown user:user /run/media/user/dev_usb/passphrase.txt
5342    bash    2026-07-28 15:48:30.000000 UTC  cp passphrase.txt /run/media/user/dev_usb/
5342    bash    2026-07-28 15:48:30.000000 UTC  cp b_disk.img /home/user/

While not the best timings to create a proper timeline of the events, the key takeaways from this are:

  • Passphrase was a txt document, not typed
  • Said passphrase lives in a removable USB!
  • Passphrase Key has been inconveniently revoked from the keyring!
  • There was a pass with sdmem to wipe stale memory values!

While we are at it, let’s also dump (a list of) the cached files. (The challenge is marked as Hard so it’s unlikely the intended path is to use passphrase.txt):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

$ rg -i "pass" memfiles
1536:0x88f241742800     /       8:2     526733  0x88f1430bb5f0  REG     1       1       -rw-r--r--      2026-07-28 13:49:10.000000 UTC  2026-07-28 13:49:10.000000 UTC  2026-07-28 13:49:10.000000 UTC  /etc/passwd     2811
2590:0x88f2417e1800     /run    0:28    932     0x88f24a2cd298  SOCK    0       0       srw-rw-rw-      2026-07-28 15:43:38.000000 UTC  2026-07-28 15:43:38.000000 UTC  2026-07-28 15:43:38.000000 UTC  /run/systemd/io.systemd.AskPassword     0
2720:0x88f2417e1800     /run    0:28    46      0x88f2487cd298  DIR     1       0       drwxr-xr-x      2026-07-28 15:48:54.000000 UTC  2026-07-28 15:43:34.000000 UTC  2026-07-28 15:43:34.000000 UTC  /run/systemd/ask-password       40
9761:0x88f240826000     /sys/kernel/debug       0:9     14      0x88f24049a290  REG     0       0       -r--r--r--      2026-07-28 15:43:36.000000 UTC  2026-07-28 15:43:36.000000 UTC  2026-07-28 15:43:36.000000 UTC  /sys/kernel/debug/regulator/reg-dummy-regulator-dummy/bypass_count     0
9865:0x88f24871c800     /snap/core24/1587       7:1     7590    0x88f1420c7480  DIR     1       0       drwxr-xr-x      2026-03-17 03:54:23.000000 UTC  2026-03-17 03:54:23.000000 UTC  2026-03-17 03:54:23.000000 UTC  /snap/core24/1587/usr/share/base-passwd56
11236:0x88f24947e800    /run/user/1000  0:86    63      0x88f146c84c98  SOCK    0       0       srw-------      2026-07-28 15:43:55.000000 UTC  2026-07-28 15:43:55.000000 UTC  2026-07-28 15:43:55.000000 UTC  /run/user/1000/systemd/io.systemd.AskPassword 0
11387:0x88f141150000    /snap/core24/1643       7:13    7586    0x88f1419d3cc0  DIR     1       0       drwxr-xr-x      2026-04-10 04:18:08.000000 UTC  2026-04-10 04:18:08.000000 UTC  2026-04-10 04:18:08.000000 UTC  /snap/core24/1643/usr/share/base-passwd56
11629:0x88f156a54000    /run/user/0     0:58    60      0x88f21dfd0398  SOCK    0       0       srw-------      2026-07-28 15:48:30.000000 UTC  2026-07-28 15:48:30.000000 UTC  2026-07-28 15:48:30.000000 UTC  /run/user/0/systemd/io.systemd.AskPassword    0
12355:0x88f141155000    /usr/share      0:68    4       0x88f142503c98  DIR     1       0       drwxr-xr-x      2026-07-28 15:43:42.000000 UTC  2026-07-28 15:43:42.000000 UTC  2026-07-28 15:43:42.000000 UTC  /usr/share/base-passwd  40

$ rg -i "dev_usb" memfiles
1918:0x88f2417e1800     /run    0:28    1288    0x88f24ab08098  DIR     1       0       drwxr-xr-x      2026-07-28 15:43:39.000000 UTC  2026-07-28 15:43:39.000000 UTC  2026-07-28 15:43:39.000000 UTC  /run/udev/links/disk\x2fby-label\x2fdev_usb     60
1919:0x88f2417e1800     /run    0:28    1289    0x88f24ab0a798  LNK     1       0       lrwxrwxrwx      2026-07-28 15:46:20.000000 UTC  2026-07-28 15:43:39.000000 UTC  2026-07-28 15:43:39.000000 UTC  /run/udev/links/disk\x2fby-label\x2fdev_usb/b8:16 -> 0:/dev/sdb        10
2964:0x88f240826800     /dev    0:7     597     0x88f24ab0b998  LNK     1       0       lrwxrwxrwx      2026-07-28 15:48:56.000000 UTC  2026-07-28 15:43:39.000000 UTC  2026-07-28 15:43:39.000000 UTC  /dev/disk/by-label/dev_usb -> ../../sdb 9

Nothing… And for good measure, let’s check the kernel cmdline: the user did edit the /etc/default/grub file. Instead of dumping the grub config file, let’s read the cmdline from the kernel directly using volshell:

1
2
3
4
5
6
7
8
9
10
11
12
13

[layer_name]> from volatility3.framework.objects import utility
[layer_name]> vmlinux = self.context.modules[self.config['kernel']]
Out[5]: <volatility3.framework.contexts.Module at 0x10a99b9d0>
[layer_name]> saved_command_line = vmlinux.object_from_symbol("saved_command_line")
[layer_name]> dt(saved_command_line)
symbol_table_name1!pointer (8 bytes) @ 0xffffbd858028 -> 0x88f25ffc9080
     symbol_table_name1!char (1 bytes): 66
[layer_name]> vmlinux.has_symbol("saved_command_line_len")
Out[8]: True
[layer_name]> n = vmlinux.object_from_symbol("saved_command_line_len")
[layer_name]> cmdline = utility.pointer_to_string(saved_command_line, n+1)
[layer_name]> cmdline
Out[13]: 'BOOT_IMAGE=/boot/vmlinuz-7.0.0-28-generic root=UUID=88469ccf-cada-49c0-a4f1-074a4fadc795 ro quiet splash init_on_free=1 crashkernel=2G-4G:320M,4G-32G:512M,32G-64G:1024M,64G-128G:2048M,128G-:4096M'

In the words of hlt: “That init_on_free=1… diabolical…”

init_on_free=1 will instruct the kernel to initialize every freed memory location, albeit not immediately, but following up with sdmem makes it safe to assume that no stale memory values exist.

It’s clear that me the author wants us to recover the Master Key from within bcachefs’s kernel structures, rather than recovering the passphrase, or reading the key from the keyring.

Bcachefs

Let’s go back to step 5 of unlocking, and into the bch2_decrypt_sb_key() function:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

int bch2_decrypt_sb_key(struct bch_fs *c,
			struct bch_sb_field_crypt *crypt,
			struct bch_key *key)
{
	struct bch_encrypted_key sb_key = crypt->key;
	struct bch_key user_key;
	int ret = 0;

	/* is key encrypted? */
	if (!bch2_key_is_encrypted(&sb_key))
		goto out;

	ret = bch2_request_key(c->disk_sb.sb, &user_key);
	if (ret) {
		bch_err(c, "error requesting encryption key: %s", bch2_err_str(ret));
		goto err;
	}

	/* decrypt real key: */
	bch2_chacha20(&user_key, bch2_sb_key_nonce(c), &sb_key, sizeof(sb_key));

	if (bch2_key_is_encrypted(&sb_key)) {
		bch_err(c, "incorrect encryption key");
		ret = -EINVAL;
		goto err;
	}
out:
	*key = sb_key.key;
err:
	memzero_explicit(&sb_key, sizeof(sb_key));
	memzero_explicit(&user_key, sizeof(user_key));
	return ret;
}

int bch2_fs_encryption_init(struct bch_fs *c)
{
	struct bch_sb_field_crypt *crypt = bch2_sb_field_get(c->disk_sb.sb, crypt);
	if (!crypt)
		return 0;

	try(bch2_decrypt_sb_key(c, crypt, &c->chacha20_key));

	c->chacha20_key_set = true;
	return 0;
}

Above code is tagged v1.38.8

The driver passes a pointer to bch_fs (c), and also a pointer to its field chacha20_key to the bch2_decrypt_sb_key() function. In turn, the function requests the passphrase from the user, derives the Passphrase Key and decrypts and stores the Master Key under bch_fs.chacha20_key.

This is our destination structure, from which we would need to grab the key!

Instead of correlating and subtracting offsets, we will directly interface with the structure in volshell. The bch_fs structure is massive, 600KB for a single struct; it’s paramount that we are working with the correct structure layout, since a single byte off would render our approach useless.

We will create debug symbols for the bcachefs.ko module from the same DKMS source that was used on the Ubuntu VM we have the memory snapshot of! That way we can have a concrete anchor without the need for a leak (Hear that Trixter, no guessing :*)

Creating Intermediate Symbol Files

Finding bcachefs Version

Firstly, we dump the bcachefs kernel module from memory:

1
2
3
4
5
6

$ vol -f memory.elf linux.lsmod [--dump]
Volatility 3 Framework 2.28.3
Progress:  100.00               Stacking attempts finished
Offset  Module Name     Code Size       Taints  Load Arguments  File Output

0xffffc077b380  bcachefs        0x30a000        OOT_MODULE,UNSIGNED_MODULE      mm_avoid_compaction=None, verify_compress=None, poison_extents_on_checksum_error=None, version=None, debug_check_bkey_unpack=None, debug_check_btree_accounting=None, debug_check_bset_lookups=None, debug_check_iterators=None, debug_check_btree_locking=None, backpointers_no_use_write_buffer=None, btree_shrinker_disabled=None, btree_gc_rewrite_disabled=None, btree_gc_always_rewrite=None, btree_node_merging_disabled=None, key_merging_disabled=None       N/A

Bcachefs stores metadata version information for every version starting from 1.0 - major_minor:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

$ strings -a bcachefs_ext.ko | awk '/^major_minor$/{f=1;n=0} f{print "1." n++ "\t" $0} /^need_discard_by_journal_seq$/{exit}'
1.0     major_minor
1.1     snapshot_skiplists
1.2     deleted_inodes
1.3     rebalance_work
1.4     member_seq
1.5     subvolume_fs_parent
1.6     btree_subvolume_children
1.7     mi_btree_bitmap
1.8     bucket_stripe_sectors
1.9     disk_accounting_v2
1.10    disk_accounting_v3
1.11    disk_accounting_inum
1.12    rebalance_work_acct_fix
1.13    inode_has_child_snapshots
1.14    backpointer_bucket_gen
1.15    disk_accounting_big_endian
1.16    reflink_p_may_update_opts
1.17    inode_depth
1.18    persistent_inode_cursors
1.19    autofix_errors
1.20    directory_size
1.21    cached_backpointers
1.22    stripe_backpointers
1.23    stripe_lru
1.24    casefolding
1.25    extent_flags
1.26    snapshot_deletion_v2
1.27    fast_device_removal
1.28    inode_has_case_insensitive
1.29    extent_snapshot_whiteouts
1.30    31bit_dirent_offset
1.31    btree_node_accounting
1.32    sb_field_extent_type_u64s
1.33    reconcile
1.34    extented_key_type_error
1.35    bucket_stripe_index
1.36    no_sb_user_data_replicas
1.37    erasure_coding
1.38    need_discard_by_journal_seq

Also, we could use ID_FS_VERSION from the disk directly:

1
2

$ blkid -p -o udev b_disk.img | grep ID_FS_VERSION
ID_FS_VERSION=1.38

So we need to download the DKMS releases for Ubuntu 26.04 LTS, “Resolute Raccoon”. The latest 1.38 release is what we want: bcachefs-kernel-dkms_1.38.8_amd64.deb

1
2
3
4

$ pwd
bcachefs-dkms/usr/src/bcachefs-1.38.8
$ ls
Makefile  build.vars  dkms.conf  src/

We have to change the following line in the Makefile in order to add debug information:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

--- a/dkms/Makefile
+++ b/dkms/Makefile
@@ -1,22 +1,23 @@
 export BCACHEFS_DKMS=1

 # Pick up build options written by `make install_dkms` (e.g.
 # BCACHEFS_DEBUG, BCACHEFS_TESTS). Whichever of these names the included
 # file defines flow through to the recursive kbuild and trip the matching
 # ifdefs in fs/Makefile. Empty / missing file is fine - unset names
 # export as no-ops.
 -include $(CURDIR)/build.vars
 export BCACHEFS_DEBUG BCACHEFS_TESTS BCACHEFS_INJECT_TRANSACTION_RESTARTS BCACHEFS_RUST

 ifneq (${KERNELRELEASE},)
-ccflags-y := -I$(src)/include
+ccflags-y := -I$(src)/include -g -gdwarf-5
 obj-m += src/fs/bcachefs/
 else
 KDIR ?= /lib/modules/`uname -r`/build

 default:
 	$(MAKE) -C $(KDIR) M=$$PWD modules

 clean:
 	$(MAKE) -C $(KDIR) M=$$PWD clean
 endif

And we can use something like the following script to cross-build on any system, without having to create a matching Ubuntu VM:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

#!/usr/bin/env bash
# Build the bcachefs DKMS module against an already-extracted kernel headers
# tree, with DWARF debug info forced by the module Makefile regardless of the
# target kernel's own CONFIG_DEBUG_INFO setting.
#
# Usage:
#   build-bcachefs-for-kernel.sh <bcachefs-dir> <headers-dir>
#
# <bcachefs-dir>  path to the bcachefs DKMS source (contains Makefile, src/)
# <headers-dir>   path to the extracted linux-headers tree (contains .config,
#                 scripts/, etc.)
set -euo pipefail

MOD_SRC="$(cd "${1:?usage: $0 <bcachefs-dir> <headers-dir>}" && pwd)"
KDIR="$(cd "${2:?usage: $0 <bcachefs-dir> <headers-dir>}" && pwd)"

if [ ! -f "$KDIR/.config" ]; then
  echo "error: no .config found in $KDIR" >&2
  exit 1
fi
if [ ! -f "$KDIR/scripts/Kbuild.include" ]; then
  echo "error: $KDIR is missing scripts/" >&2
  exit 1
fi

echo "== building bcachefs.ko against $KDIR =="
make -C "$MOD_SRC" KDIR="$KDIR" clean >/dev/null 2>&1 || true
make -C "$MOD_SRC" KDIR="$KDIR"

KO="$MOD_SRC/src/fs/bcachefs/bcachefs.ko"
echo
echo "== result =="
file "$KO"
echo "vermagic: $(modinfo -F vermagic "$KO" 2>/dev/null)"

After building, we can just use dwarf2json to extract a json file containing the proper symbol information we can insert into volshell!

1
2
3
4
5
6
7
8
9
10
11
12

$ dwarf2json linux --elf bcachefs.ko > syms/bcachefs.json
$ head bcachefs.json
{
  "metadata": {
    "linux": {
      "symbols": [
        {
          "kind": "dwarf",
          "name": "bcachefs.ko",
          "hash_type": "sha256",
          "hash_value": "dd6c5da1e48ea0daf6071a0cf0198956de48d5e07492832cdef40ead3763df04"
        },

We can add additional symbol paths for volatility to search through using -s, so we run volshell again with -s syms. We begin by importing some needed modules and grabbing the kernel module and layer:

Retrieving the Key

The superblock hunt

1
2
3
4

[layer_name]> from volatility3.framework.symbols import intermed, linux

[layer_name]> vmlinux = self.context.modules[self.config['kernel']]
[layer_name]> kernel_layer = self.context.layers['layer_name']

We then iterate over the list of superblocks until we arrive at the bcachefs one:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

[layer_name]> super_blocks = vmlinux.object_from_symbol("super_blocks")

[layer_name]> dt(super_blocks)
symbol_table_name1!list_head (16 bytes) @ 0xffffbe4ac1f0:
  0x0 :   next     *symbol_table_name1!list_head     0x88f240823000
  0x8 :   prev     *symbol_table_name1!list_head     0x88f141152800

[layer_name]> super_block_list = list(
  super_blocks.to_list(
    symbol_type=f"{vmlinux.symbol_table_name}!super_block",
    member="s_list"
  )
)

[layer_name]> sb_bch = None

[layer_name]> for sb in super_block_list:
         ...:     sb_name = sb.get_type()
         ...:     if sb_name == "bcachefs":
         ...:         sb_bch = sb
         ...:

When the loop finishes, we should have an object of type super_block:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

[layer_name]> dt(sb_bch)
symbol_table_name1!super_block (1408 bytes) @ 0x88f242762000:
    0x0 :   s_list                    symbol_table_name1!list_head                offset: 0x88f242762000
   0x10 :   s_dev                     symbol_table_name1!unsigned int             7340044
   0x14 :   s_blocksize_bits          symbol_table_name1!unsigned char            12
   0x18 :   s_blocksize               symbol_table_name1!long unsigned int        4096
   0x20 :   s_maxbytes                symbol_table_name1!long long int            9223372036854775807
   0x28 :   s_type                    *symbol_table_name1!file_system_type        0xffffc0775560
   0x30 :   s_op                      *symbol_table_name1!super_operations        0xffffc0a0ff80
   0x38 :   dq_op                     *symbol_table_name1!dquot_operations        0x0 (null pointer)
   [...]

[layer_name]> sb_bch.uuid
Out[11]: '3f730749-d766-4785-bb68-d8b64ce71efe'

The UUID matches the one provided by the file command as well!

The super_block struct contains an attribute named s_fs_info which points to each filesystem’s private information; this points to bch_fs and is the reason why we needed to create an ISF for bcachefs.

Volshell with custom ISFs

1
2
3
4
5
6
7
8
9

[layer_name]> bch_table_name = intermed.IntermediateSymbolTable.create(
         ...:     context=self.context,
         ...:     config_path="symbols.bcachefs",
         ...:     sub_path="",
         ...:     filename="bcachefs",
         ...: )

[layer_name]> bch_table_name
Out[13]: 'bcachefs1'

We can add the symbol file we created earlier with filename=bcachefs[.json] (ignoring the extension). sub_path needs to be empty because we added the syms directory in the global symbol search path!

When we have the table name, we can use it to instantiate objects of that table at arbitrary locations!

1
2
3
4
5
6
7
8
9
10
11

[layer_name]> bch_fs = self.context.object(
         ...:     object_type=f"{bch_table_name}!bch_fs",
         ...:     offset=sb_bch.s_fs_info,
         ...:     layer_name="layer_name"
         ...:     )

[layer_name]> dt(bch_fs)
bcachefs1!bch_fs (559488 bytes) @ 0x88f156400000:
      0x0 :   cl                                 bcachefs1!closure                          offset: 0x88f156400000
     0x30 :   list                               bcachefs1!list_head                        offset: 0x88f156400030
     [...]

Lo and behold, the 600KB bch_fs struct!

From here, we can directly read the chacha20_key:

1
2
3

[layer_name]> chacha20_key = kernel_layer.read(bch_fs.chacha20_key.vol.offset, 32)
[layer_name]> chacha20_key.hex()
Out[22]: '853ed0ebcb874dc4f04bd310d4d97e3af2a401354f77fa8c07ea60c7b5458133'

Unfortunately we cannot check for the bch**key Magic, since we don’t have the Passphrase Key…

Sufficient conditions

Assuming the Master Key we recovered earlier is correct, we cannot use it directly as we would do for example in a BitLocker/LUKS volume… The mounting chain goes through the passphrase mechanism… We can counteract this in one of 2 ways:

  1. The Master Key is stored encrypted by the Passphrase Key (=== Passphrase). We can re-encrypt the Master Key with our own passphrase-derived key and replace it in the partition. This, however, would entail that we also replace it in every copy of the superblock across the disk image AND recalculate the appropriate CRC32 checksums to go with them!
  2. Hardcode the Master Key in the driver itself so it always uses our key, regardless of passphrase, and never asks for a passphrase at all.

For a CTF that banned LLMs the simplest solution is the 2nd. But just for good measure I Claude slopped a script that will perform method 1.

Modifying the source

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

--- a/fs/data/checksum.c
+++ b/fs/data/checksum.c
@@ -1,11 +1,12 @@
 int bch2_fs_encryption_init(struct bch_fs *c)
 {
 	struct bch_sb_field_crypt *crypt = bch2_sb_field_get(c->disk_sb.sb, crypt);
 	if (!crypt)
 		return 0;

-	try(bch2_decrypt_sb_key(c, crypt, &c->chacha20_key));
+	//try(bch2_decrypt_sb_key(c, crypt, &c->chacha20_key));
+	char hardcode_key[32] = {0x85,0x3e,0xd0,0xeb,0xcb,0x87,0x4d,0xc4,0xf0,0x4b,0xd3,0x10,0xd4,0xd9,0x7e,0x3a,0xf2,0xa4,0x01,0x35,0x4f,0x77,0xfa,0x8c,0x07,0xea,0x60,0xc7,0xb5,0x45,0x81,0x33};
+	memcpy(c->chacha20_key.key, hardcode_key, 32);
 	c->chacha20_key_set = true;
 	return 0;
 }

We force the driver to hardcode the key into the bch_fs structure and never even bother calling bch2_decrypt_sb_key(), which in turn asks for the passphrase, etc:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

int bch2_request_key(struct bch_sb *sb, struct bch_key *key)
{
	CLASS(printbuf, key_description)();
	int ret;

	prt_printf(&key_description, "bcachefs:");
	pr_uuid(&key_description, sb->user_uuid.b);

	ret = __bch2_request_key(key_description.buf, key);

#ifndef __KERNEL__
	if (ret) {
		char *passphrase = read_passphrase("Enter passphrase: ");
		struct bch_encrypted_key sb_key;

		bch2_passphrase_check(sb, passphrase,
				      key, &sb_key);
		ret = 0;
	}
#endif

	/* stash with memfd, pass memfd fd to mount */

	return ret;
}

From here we could build from the git source on any distro we want (should check out tag 1.38.8) or we could download and modify the DKMS source on Ubuntu 26.04.

Building

We clone the official git repo and check out v1.38.8:

1
2
3

$ git clone https://github.com/koverstreet/bcachefs-tools.git
$ git fetch --tags
$ git checkout tags/v1.38.8

We build using make and install the module with sudo make dkms-reload:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

$ sudo make dkms-reload
make[1]: Entering directory '/home/canopus/dev/bcachefs-tools'
    [SED]    dkms/dkms.conf
install -m0644 -D dkms/Makefile         -t /usr/src/bcachefs-v1.38.8-dirty
install -m0644 -D dkms/dkms.conf                -t /usr/src/bcachefs-v1.38.8-dirty
install -m0644 -D fs/Makefile   -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs
(cd fs; find . -path ./vendor/kernel-rust -prune -o \( -name '*.[ch]' -o -name '*.rs' \) -exec install -m0644 -D {} /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/{} \; )
mkdir -p /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/vendor
cp -a fs/vendor/kernel-rust /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/vendor/
install -m0755 -D fs/scripts/getdents-layout.sh -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/scripts
install -m0755 -D fs/scripts/rust-is-available-dkms.sh -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/scripts
install -m0755 -D fs/scripts/fetch-module.sh -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/scripts
install -m0644 -D signing/bcachefs-signing-ca.pem -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs/scripts
install -m0644 -D dkms/module-version.c -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs
install -m0644 -D version.h                     -t /usr/src/bcachefs-v1.38.8-dirty/src/fs/bcachefs
make[1]: Leaving directory '/home/canopus/dev/bcachefs-tools'
    [DKMS]   bcachefs/v1.38.8-dirty

Deleting module bcachefs/v1.38.8-dirty completely from the DKMS tree.
Creating symlink /var/lib/dkms/bcachefs/v1.38.8-dirty/source -> /usr/src/bcachefs-v1.38.8-dirty
Sign command: /usr/lib/modules/7.2.9-1-cachyos/build/scripts/sign-file
Signing key: /var/lib/dkms/mok.key
Public certificate (MOK): /var/lib/dkms/mok.pub

Building module(s).............. done.
Signing module /var/lib/dkms/bcachefs/v1.38.8-dirty/build/src/fs/bcachefs/bcachefs.ko
Installing /usr/lib/modules/7.2.9-1-cachyos/updates/dkms/bcachefs.ko.zst
Running depmod... done.
filename:       /lib/modules/7.2.9-1-cachyos/updates/dkms/bcachefs.ko.zst
version:        v1.38.8-dirty
srcversion:     5EF4FF48F1CBA6B95A7621C

$ lsmod | rg bcache
bcachefs             3162112  0
lz4hc_compress         20480  2 zram,bcachefs

Finally, we can mount as normal and browse the mount for files:

1
2
3
4
5

$ sudo mount -t bcachefs b_disk.img /mnt
[sudo] password for canopus:
$ ls /mnt
drwx------   - root root 28 Jul 17:21  lost+found
.rw-r--r-- 72k root root 28 Jul 17:21  'Kuchenblech Mafia Research Report.pdf'

Agh, the Kuchenblech Mafia strikes again!

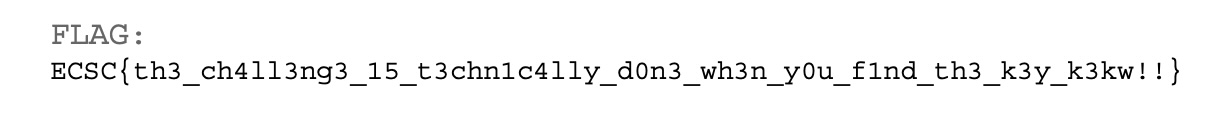

FLAG: ECSC{th3_ch4ll3ng3_15_t3chn1c4lly_d0n3_wh3n_y0u_f1nd_th3_k3y_k3kw!!}

The FUSE mount path has a bug that requires this fix on 1.38.8. Unrelated to the Key hardcoding:

1
2
3
4
5
6
7
8
9
10
11
12
13

diff --git a/fs/fs/dirent.c b/fs/fs/dirent.c
index 45960b0d9..971163d6c 100644
--- a/fs/fs/dirent.c
+++ b/fs/fs/dirent.c
@@ -784,6 +784,8 @@ static int bch2_dir_emit(struct btree_trans *trans,
                         struct dir_context *ctx,
                         struct bkey_s_c_dirent d, subvol_inum target)
 {
+       /* FUSE: actor derives the entry offset from ctx->pos (see kernel variant) */
+       ctx->pos = d.k->p.offset;
        return bch2_dir_emit_slow(trans, sk, ctx, d, target);
 }
 #endif

Vibing

Instead of modifying the driver’s source, we could modify the disk directly; that way it will be a proper disk image that we have the password to:

  1. Find the internal UUID of the partition

    1
2
3
4
5
6
7

    $ ./bcachefs_wrap_key.py show-uuid b_disk.img

internal uuid: e246dd24-9c18-464c-9294-bae6b184e092   (use this for `wrap --sb-uuid`)
external uuid: 3f730749-d766-4785-bb68-d8b64ce71efe   (what blkid/lsblk show you)
label:         (none)
version:       1062 (min 1062)
seq:           81
  2. Find all instances of the superblock

  3. Encrypt the master key with a new passphrase and derive a new encrypted master key

    1
2
3
4
5
6
7

    $ ./bcachefs_wrap_key.py wrap --sb-uuid e246dd24-9c18-464c-9294-bae6b184e092  --master-key 853ed0ebcb874dc4f04bd310d4d97e3af2a401354f77fa8c07ea60c7b5458133

generated passphrase (~72 bits from wordlist; use --words to raise this, or --passphrase to supply your own)
passphrase:  thus-baby-call-page-debt-poor-meal-left
master key:  853ed0ebcb874dc4f04bd310d4d97e3af2a401354f77fa8c07ea60c7b5458133
sb uuid:     e246dd24-9c18-464c-9294-bae6b184e092
wrapped key: 170bb622377d6111d0c341d89fde00b5b18f88d07695fb72b93794b307aa3176dc061fd274fda97e  (write this into bch_sb_field_crypt.key)

  4. Write the new key into the specific offsets of the superblocks

    1
2
3
4
5
6
7
8

    $ ./bcachefs_wrap_key.py write-key --image b_disk.img --wrapped-key 170bb622377d6111d0c341d89fde00b5b18f88d07695fb72b93794b307aa3176dc061fd274fda97e

wrote 40-byte wrapped key to b_disk.img at offset 5288
wrote 40-byte wrapped key to b_disk.img at offset 1053864
wrote 40-byte wrapped key to b_disk.img at offset 1072694440
recomputed checksum for sb @ 4096: 45cd73d0 (crc32c_nonzero)
recomputed checksum for sb @ 1052672: ac432dac (crc32c_nonzero)
recomputed checksum for sb @ 1072693248: 00dea6c1 (crc32c_nonzero)

Downloads

Everything you need to follow along, or to redo the key swap yourself:

FileSizeSHA-256
bcachefs_wrap_key.py30 KBc572ae276bb7f254c138eca78006a3eeb83e9c7da2a528726b34927dfb74545c
bcachefs-kernel-dkms_1.38.8_amd64.deb1.5 MBf962d4e03d69b29c1a74d822124f2f389f21c8951f284ea59ad4aa1e4afaede6
Kuchenblech Mafia Research Report72 KB5e0522f17403e2a8052cdc3034d5fd43446277fed403e9c54dc0193e24dcbaee

Conclusion

I learned an awful lot about volatility and bcachefs while researching this challenge. I started looking at this in July and it took about 2 months of constant grinding, testing and countless memory snapshots until I had everything perfect.

Unfortunately, as I already said, my challenge remained unsolved. I was a watchdog during the CTF, and from the small area I was surveying only Trixter from team Finland had the correct thinking so huge kudos to him; but alas The Tux fell in the same rabbit hole as me when I was writing the challenge. He was using a different struct… and that made it impossible to have the correct offsets, but worse, you don’t know your offsets are wrong…

What I did not do

Evidently, I might have overcooked it a bit with this challenge, but generally the feedback I got was positive. I had one more idea for a pure disk-based challenge, but the more I thought about it, it didn’t fit. Let me explain.

The idea was to provide a (dirty) F2FS disk image with a deleted file in need of recovery! The catch is that because of F2FS’s checkpoint system, if you mount in any way other than -o ro,norecovery the old checkpoint that holds the deleted file gets removed, so goodbye flag!

This didn’t fit for multiple reasons:

  • Feels like an anti-pattern
  • Imagine this extremely niche detail was what decided who won ECSC… Players would feel very angry at the author and rightfully so!
  • Solving this requires halfway re-implementing some parts of the F2FS driver from scratch… For me while testing, it felt like a math equation rather than an opportunity to learn something from it.
  • Evil

In any case, big applause to all of the teams attending the competition and I hope you learned as much as I did while I was researching for this challenge!

I felt very humbled creating content for such a large event, and it also felt very wholesome given that a couple of years ago I was sitting in that chair for 10 hours grinding to solve challenges. A very big thank you to the Organization for inviting us and giving us this opportunity!

Thank you for reading, and instead of potato, I give you, Παπιρούα 🪿!!

Forensics, Bcachefs
volatility forensics ctf writeup bcachefs disk volshell
This post is licensed under CC BY 4.0 by the author.
